Trace Display

Trace Display

Display

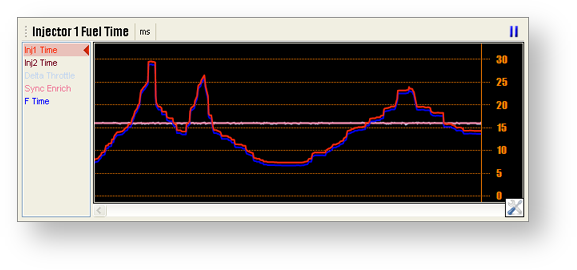

The trace display shows the graphical history of any selected ECU channel. The trace display can have up to 5 channels at once. The focus of the trace display can be changed between the selected channels by clicking on the channel name within the display. The trace display name & axis values will change to the channel in focus. The individual trace display can be paused at any time by clicking on the play/pause button in the top right hand corner of the display. The display can be resumed at any time by clicking back on the play/pause button.

To add or remove channels or to view the trace displays properties, right click on the display.

Properties

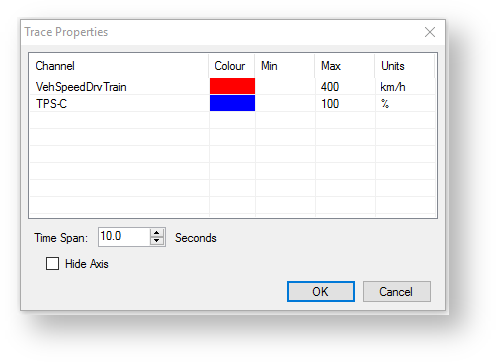

Within the properties window, the colour of each channel can be configured, as well as the time span of the display, maximum displayed value and the units.
