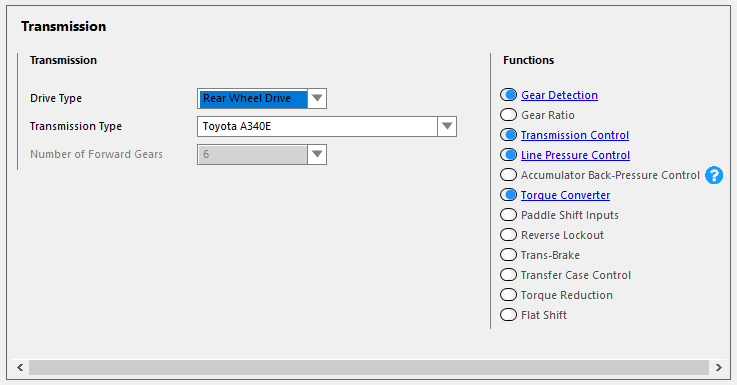

Drive Type - Select if the vehicle is Rear, Front or All Wheel Drive
Transmission Type - Select what type of transmission is in the vehicle. Some common automatic transmissions are selectable from this dropdown, and important functions to enable will be highlighted in red to be enabled.
Number of Forward Gears - Select how many forward gears the transmission has. This setting is only available where a generic Transmission Type is selected.

Functions

This section is used to enable and disable any transmission function nodes in the Navigation Tree.
Transmission function names can be clicked on to navigate to that functions relevant tree node.
Any errors will be highlighted in red for your attention.


    • Related Articles

    • Transmission Control

      Transmission Control The Transmission Control function is able to control multiple styles of transmission. Some conventional automatic transmissions such as the Toyota A340e, pneumatically actuated sequential transmissions, as well as pneumatically ...

    • Accumulator Back Pressure Control

      Accumulator Back Pressure Control  Any automatic transmissions utilise hydraulic accumulators to reduce the rate at which pressure gets applied to the internal clutches and bands when a new gear is selected. In some transmissions, such as the Toyota ...

    • Nexus Ti4L - Transmission Interface Kit, suits GM 4L Series

      Overview The Nexus Ti4L Transmission Interface offers a seamless and efficient solution for controlling GM 4L series automatic transmissions via your Nexus ECU or VCU. Whether setting up a new system or upgrading an existing vehicle, the Ti4L kit ...

    • Transmission Line Pressure Control Wiring

      Wiring Choose a pin which is capable of handling the current draw required for the Line Pressure Control Solenoid. See the workshop manual to determine the expected current draw.  All Nexus DPOs are rated for 3 Amps, but some like the HBOs ...

    • Transmission Control Wiring

      Wiring Options Number of Outputs - This setting is only required for some Transmission Types. It is greyed out when the ECU can determine the number of outputs from the Transmission Type and/or the Number of Gears (e.g. GM 4L60 uses 2 gear select ...
