Variable Valve Lift

Variable Valve Lift

Variable Valve Lift supports the Nissan 370Z VVEL module (Variable Valve Event and Lift System) as a standalone application. The 370Z CAN Bus must be Selected in Connections > CAN > Vehicle CAN System.

See 370Z VVEL Control Module Wiring Diagram in the Help for more information.

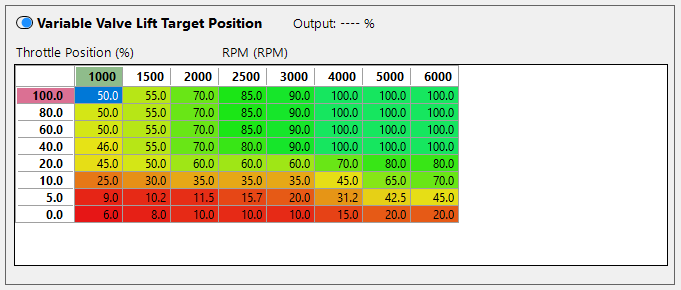

Variable Valve Target Position Table

This Table sets the target position for the Valve Lift.
