Variable Valve Lift
Variable Valve Lift supports the Nissan 370Z VVEL module (Variable Valve Event and Lift System) as a standalone application.
Limp mode on OEM ECU will be enabled if used in parallel installation, this is caused by the OEM not receiving the required message from the Module.
This function is designed to run the Nissan VVEL Module independently in a complete aftermarket engine management application.
See Elite 370Z VVEL Control Module Wiring Diagram
|
Page Contents |

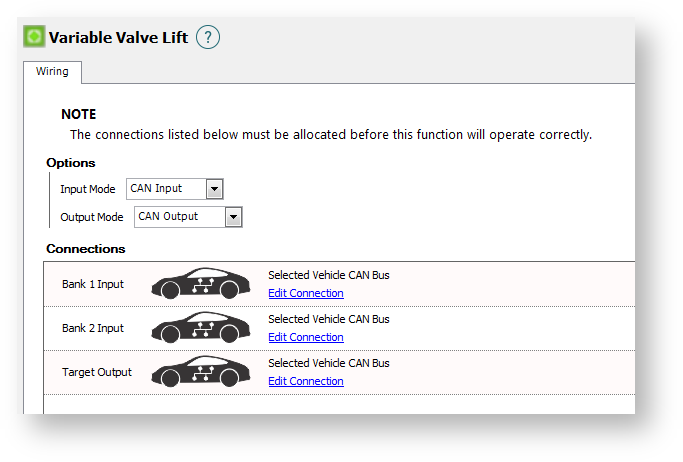

Wiring Tab
Options
Input Mode
Select the input mode (CAN)
Output Mode
Select the output mode (CAN)
Connections
Bank 1 Input
Select an appropriate input connection (from the CAN Bus). Each variable cam must have position sensor information so the ECU knows it’s position.
Bank 2 Input
Select an appropriate input connection (from the CAN Bus). Each variable cam must have position sensor information so the ECU knows it’s position.
Target Output
Select an appropriate output connection (from the CAN Bus). This is where the output signal will be broadcast.
Tuning Table
Variable Valve Lift Target Position Table
Target Position of the Valve Lift
Wiring Diagram
Nissan VVEL Control Module Wiring Diagram
