Vehicle Can Bus Selection

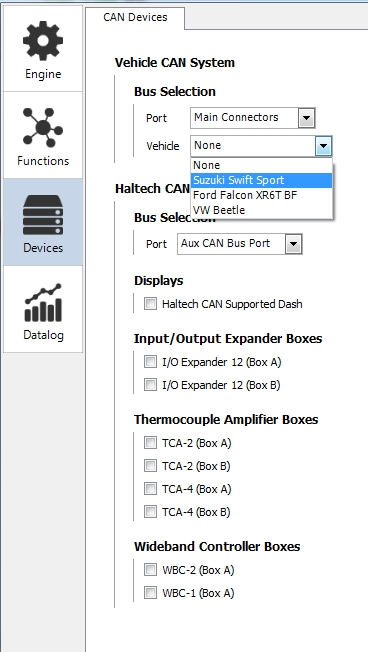

The Haltech Vehicle CAN is used to support vehicles which incorporate a vehicle CAN Bus. The Vehicle CAN Bus from the Haltech broadcasts messages required for the selected vehicle to interact with OEM modules and OEM Dashes. Select from the dropdown list of the current supported vehicles. Select the port where you would like the Bus to be broadcast. Haltech is continually developing and supporting more applications and will progressively update with firmware releases.
CAN Bus Overview
The Haltech Elite 2500 ECU has Dual CAN Bus communications capable of communicating directly to the Haltech Bus and the Vehicle Bus and can be enabled and configured via the Devices tab within the setup page.
Vehicle CAN System
Vehicle CAN System Bus Selection OBD-II - The Haltech ECU can output OBDII data on the Vehicle CAN system. This allows most scan tools, plus third party applications such as iPhone/Android OBDII displays, to display diagnostic trouble codes and ...
Haltech Can Bus Selection
The Haltech CAN Bus is used to communicate with all Haltech CAN based expansion devices such as wideband controllers, display dashes and I/O expander boxes. Select the port where you would like the Bus to be broadcast.
