Wastegate Pressure Sensor

Wastegate Pressure Sensor


The Wastegate Pressure Sensor function allows for monitoring of the pressure acting on top of the wastegate diaphragm. This pressure value is used as the controlled parameter when using CO2 Boost Control. Also known as 'Dome Pressure' or 'Hat Pressure'.



On this node, the Wastegate Pressure sensor calibration can be loaded or entered manually. If you have purchased a Pressure sensor from Haltech, calibrations can be loaded directly into the calibration table by using the 'Load from File' button. Calibrations can be saved to file by using the 'Save to File' button.

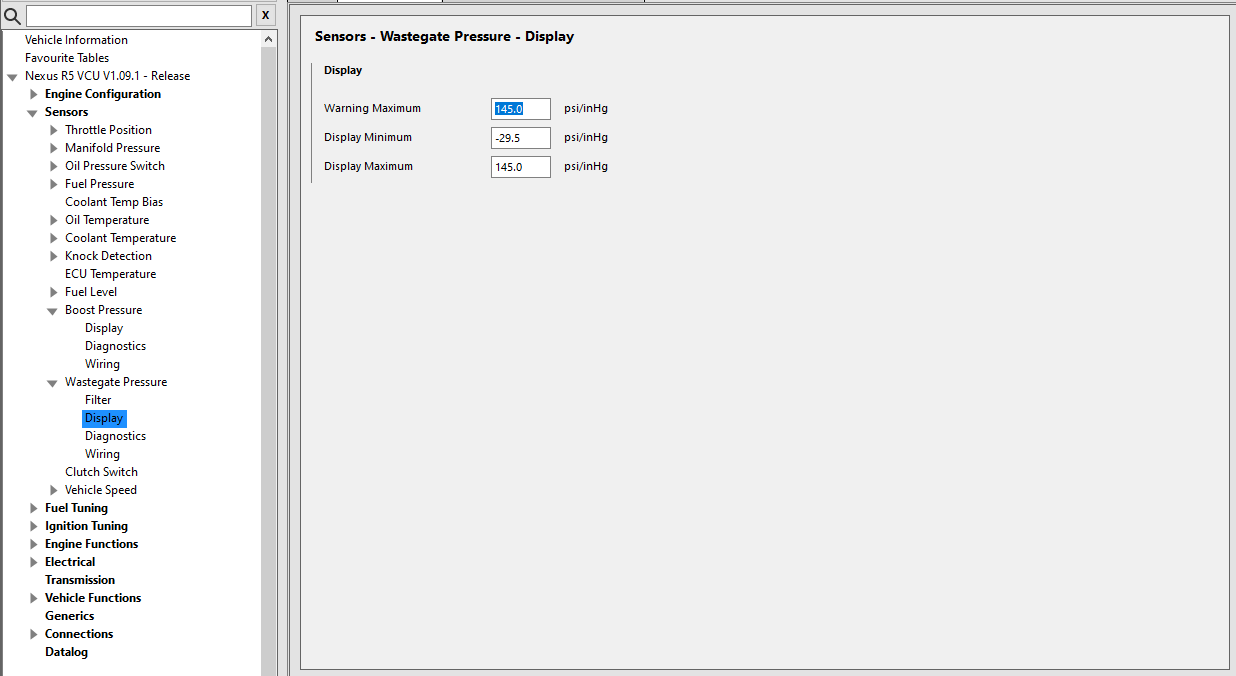

Display



This node sets the display settings for the Wastegate Pressure channel.
Warning Maximum - Sets the pressure at which the Wastegate Pressure sensor Number Displays, Gauges and Bars will enter their upper warning state
Display Minimum - Sets the pressure at which the Wastegate Pressure sensor Number Displays, Gauges and Bars will start.
Display Maximum - Sets the pressure at which the Wastegate Pressure sensor Number Displays, Gauges and Bars will end.

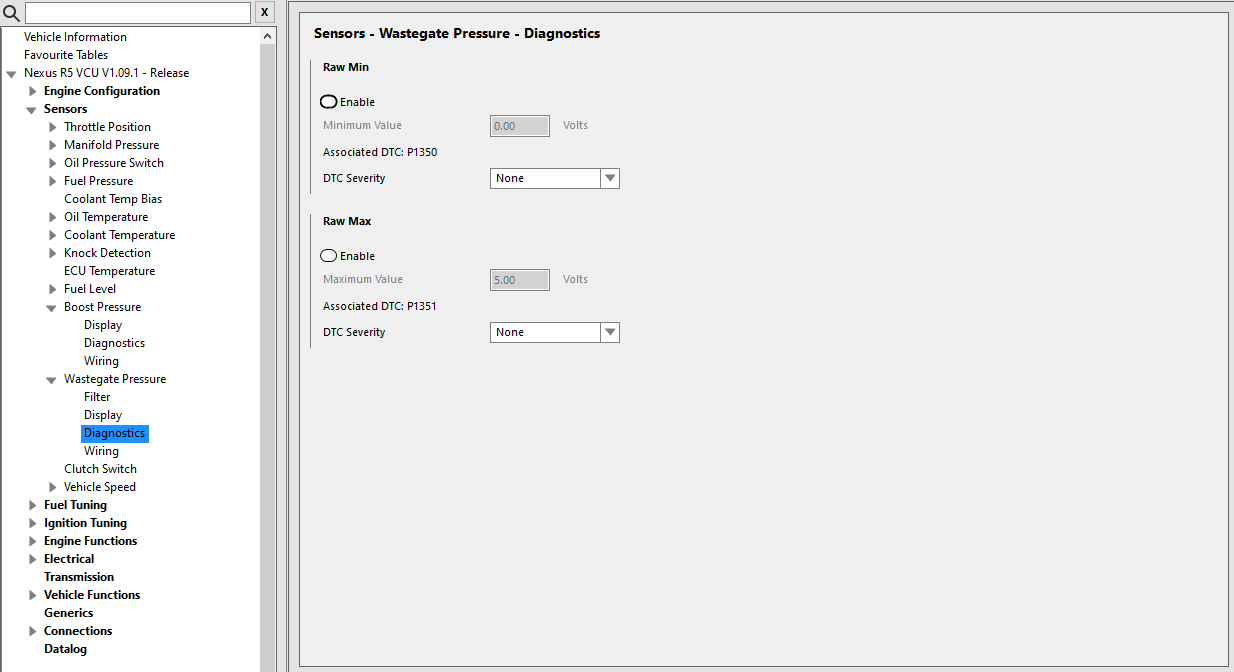

Diagnostics



This node allows the enabling of high and low voltage DTCs for the Wastegate Pressure sensor.
A DTC severity can be set for each voltage, which will trigger an Engine Protection level for the relevant setting.

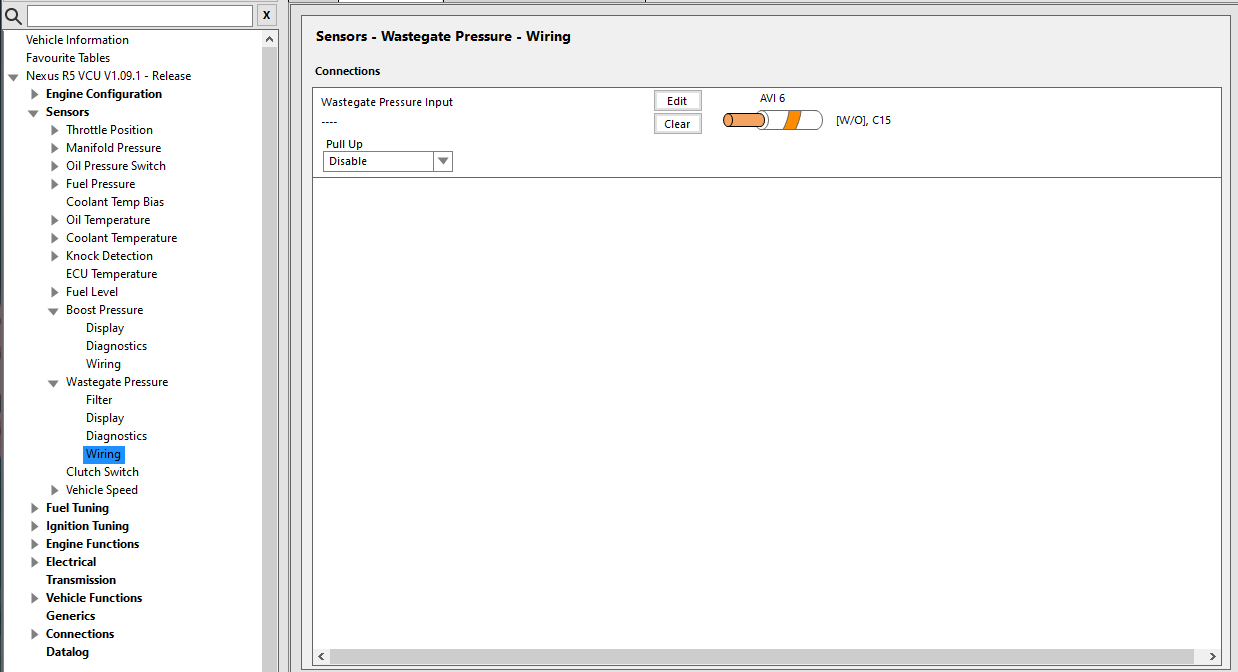

Wiring



This node allows you to assign the input for the Wastegate Pressure sensor.
Pressure Sensors use an Analog Input. Any available AVI can be used.
It is recommended to disable the Pull Up.
