Wastegate Pressure Sensor
The Wastegate Pressure Sensor function allows for monitoring of the pressure delivered to the wastegate diaphragm.
|
Page Contents |
Wiring Tab
Connections
Select an appropriate input to use for the Wastegate Pressure sensor. An AVI (Analogue Voltage Input) or SPI (Synchronised Pulsed Input) should be used.
AVI
An AVI (Analogue Voltage Input) is suggested.
Pull up
Enables a 1k pull up resistor to 5V.
Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.
SPI
An SPI (Synchronised Pulsed Input) can be used where there are no available AVIs.
Sensor Type
Set to Hall Effect for all analogue inputs
Pull up
Enables a weak 10k pull up resistor to 5V.
Typically the pull up should be enabled with any two-wire temperature sensor, and disabled for sensors with their own voltage supply. If the sensor is being shared with another ECU, such as with a piggyback installation with an OEM ECU, then the other ECU will generally include a necessary pull up and this setting should be set to Disabled.
Calibration Tab
This allows calibrations for a Wastegate Pressure Sensor to be loaded or saved. A number of calibrations come pre-installed with the ESP Software package. If your sensor is not listed, a custom calibration can be created with the data provided by the sensor manufacturer.
From the image above:
1 – Selecting the yellow Open icon on the top left will allow the loading of a pre-configured calibration file.
2 – Selecting the blue Disk icon next to the open icon will allow the saving of your custom calibration file.

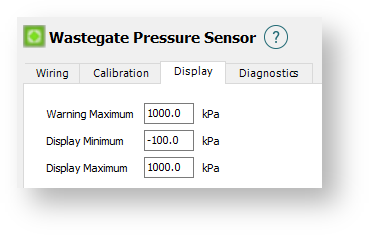

Display Tab
Warning Maximum
Sets the pressure such that above this value will cause any gauge displaying the Wastegate Pressure to highlight flashing red.
Display Minimum
Sets the minimum pressure that a Wastegate Pressure gauge can display. This does not affect the reading of the sensor, only what can be displayed in the ESP software.
Display Maximum
Sets the maximum pressure that any Wastegate Pressure gauge can display. This does not affect the reading of the sensor, only what can be displayed in the ESP software.

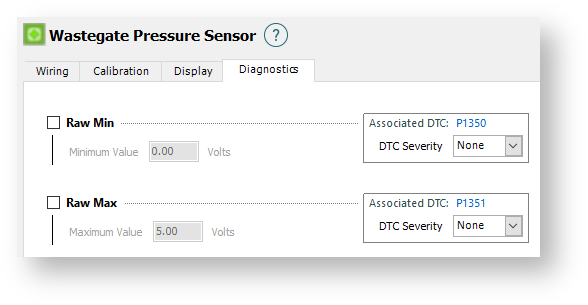

Diagnostics Tab
The settings in this tab allow limits to be set for the detection of fault conditions.
Raw Min
Only available when the Input Type has been set to Analogue Voltage. When enabled, this allows for the error code P1350 to be set when the voltage is below the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active, a DTC Severity level can be selected for this condition if desired. (Default = Disabled)
Raw Max
Only available when the Input Type has been set to Analogue Voltage. When enabled, this allows for the error code P1351 to be set when the voltage is above the set amount. This is used to detect a short or disconnection with the wiring. If the Engine Protection function is active, a DTC Severity level can be selected for this condition if desired. (Default = Disabled)
