Launch Control Wiring
Options

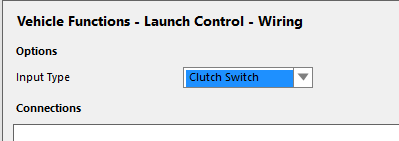

Input Type
Always On
Launch Control will always be active when all conditions are met in the Launch Control Tab.
Launch Switch
A Launch Switch is to be wired to the Nexus VCU to enable Launch Control.
Clutch Switch
Allows the Launch Control function to operate when the Clutch Switch is engaged. A Clutch Switch should be configured as a separate function.
Trans-Brake Input
Allows the Launch Control function to operate when the Trans-Brake Input is active. Trans-Brake should be configured as a separate function.
Connections
Launch Control Switch Input
Select an appropriate input to use for the Launch Control Switch. An SPI or an AVI (Analogue Voltage Input) can be used.
Connection Type
SPI
An SPI (Synchronised Pulsed Input) requires configuring of the edge and the type of Sensor to be connected.
Edge Select
Falling is used when the input is grounded when the switch is activated. Rising is used when the input is supplied voltage when the switch is activated.
Sensor Type
Set to Hall Effect for all switch inputs
Pullup
Enables a pullup if required to generate a voltage when the switch is off.
AVI
An AVI will require Switch On and Switch Off voltages to be configured so the Nexus VCU can know which voltages on the AVI meet the conditions required.
Switch On Voltage
The voltage either above or below where the switch is considered to be ON. When selecting an appropriate value some consideration should be given to allow for voltage fluctuations.
Switch Off Voltage
The voltage either above or below where the switch is considered to be OFF. When selecting an appropriate value some consideration should be given to allow for voltage fluctuations. Eg. if the switch is at 5V when it is Off and is grounded to 0V when the switch is On, you would set the On voltage to 1.0V and the Off Voltage to 4.0V.
Example 1
The switch is at 5V when it is Off and is grounded to 0V when the switch is On. Correct settings with tolerance would be to set the On voltage to 0.5V and the Off Voltage to 4.5V. i.e. when the voltage falls below 0.5V it is considered to be ON, and when it rises back above 4.5V it is considered to be OFF.
Example 2
The switch is at 2.5V when it is OFF, and is at 12V when it is ON. Correct settings with tolerance would be to set the On Voltage to 4.5V and the Off Voltage to 3.0V. i.e. when the voltage rises above 4.5V it is considered to be ON, and when it falls back below 3.0V it is considered to be OFF.
