Proportional, Integral and Derivative Gain
These tables allow mapping of the PID system, which controls the responsiveness of the Closed Loop Idle Control system. For information on how to tune PID systems, see the PID User's Guide.

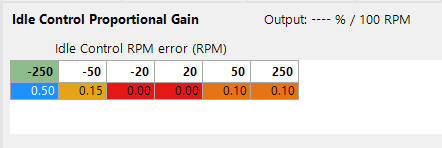

Proportional Gain
In simple terms the Proportional Gain controls how fast the system will respond relative to how far it is from the target, or high reactive the system is.

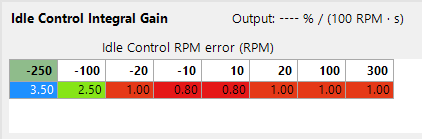

Integral Gain
The Integral Gain is how aggressive the Proportional changes are. The Integral Gain has the main purpose of adding more correction over time based on how much error is present.

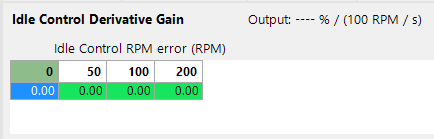

Derivative Gain
Derivative Gain is used to control the rate of change of the target error. It works by pushing the correction in the opposite direction when approaching the target to help prevent overshooting of the target.
