Transmission Line Pressure Sensor
A Transmission Line Pressure Sensor can be used with your ECU for mapping of Transmission Control tables such as Line Pressure Control, for datalogging and for Engine Protection purposes. A Transmission Line Pressure Sensor is a powered sensor that typically has three wires; a 5V+ power wire, a signal wire to the ECU, and a Signal Ground.
On this node, the Transmission Line Pressure sensor calibration can be loaded or entered manually. If you have purchased a Pressure sensor from Haltech, calibrations can be loaded directly into the calibration table by using the 'Load from File' button. Calibrations can be saved to file by using the 'Save to File' button.

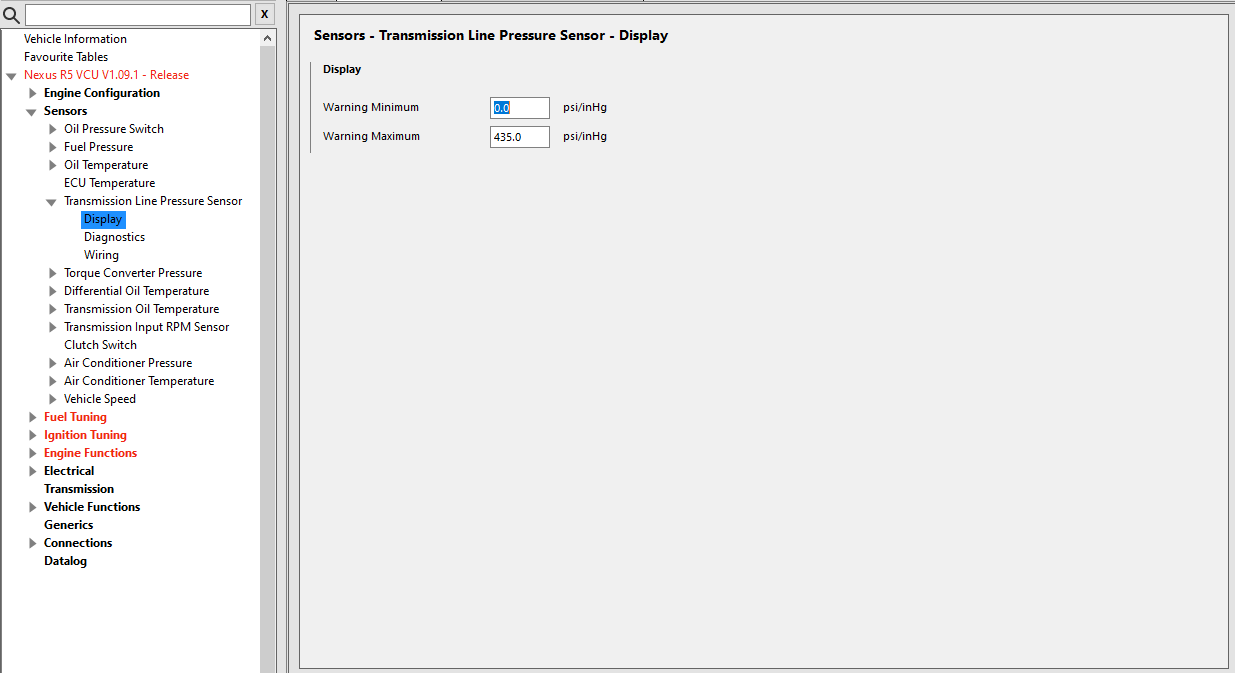

Display
This node sets the display settings for the Transmission Line Pressure channel.
Warning Minimum - Sets the pressure at which the Transmission Line Pressure sensor Number Displays, Gauges and Bars will enter their lower warning state.
Warning Maximum - Sets the pressure at which the Transmission Line Pressure sensor Number Displays, Gauges and Bars will enter their upper warning state.

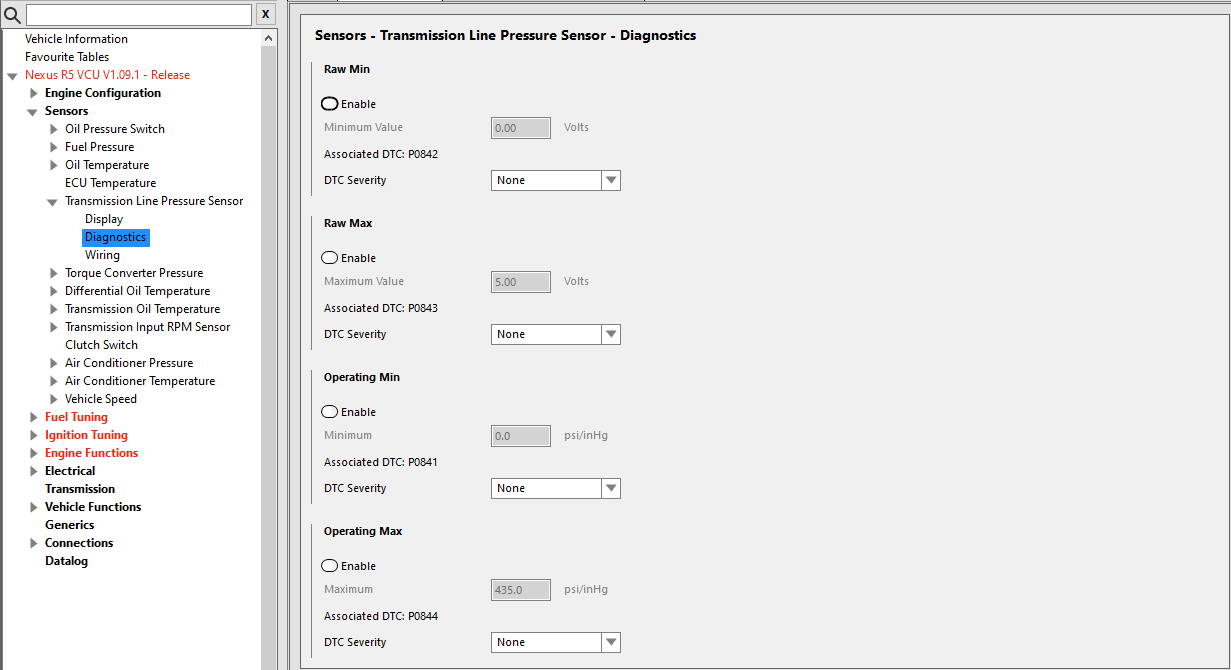

Diagnostics
This node allows the enabling of high and low voltage DTCs as well as Minimum and Maximum pressure DTCs for the Transmission Line Pressure sensor.
A DTC severity can be set for each voltage and pressure, which will trigger an Engine Protection level for the relevant setting.

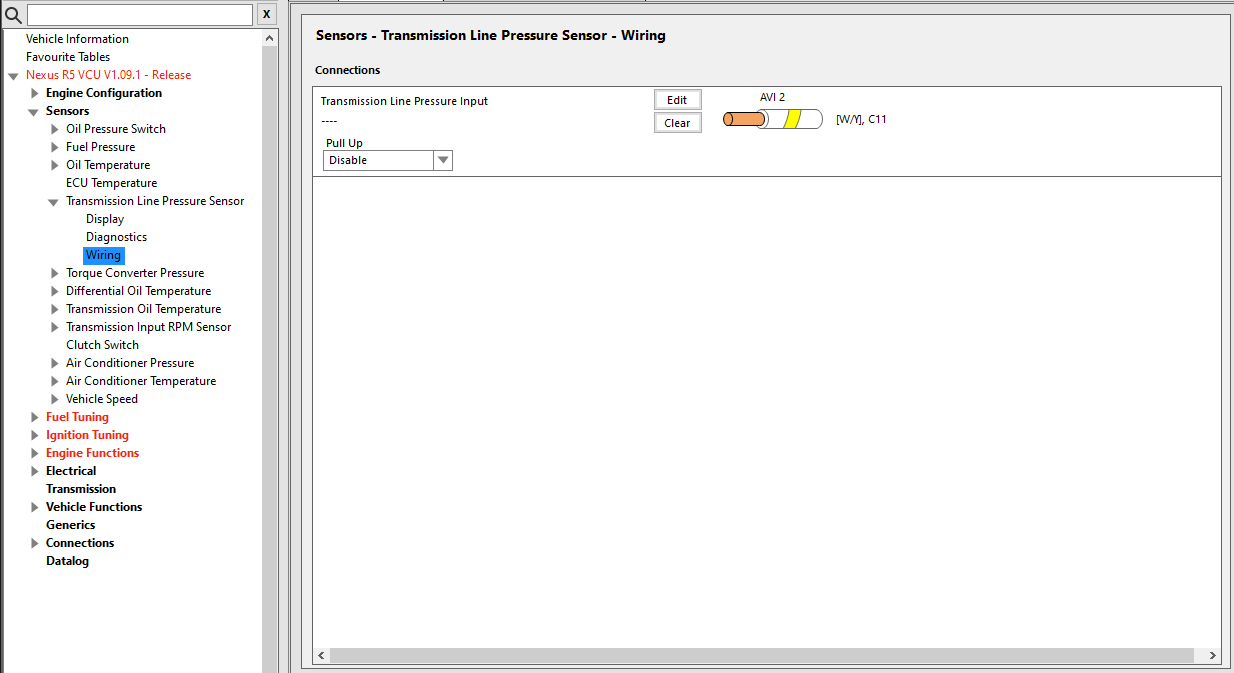

Wiring
This node allows you to assign the input for the Transmission Line Pressure sensor.
Transmission Line Pressure sensors use an Analog Input. Any available AVI can be used.
It is recommended to disable the Pull Up.
