Fuel Injector Overview



A fuel injector is an electronically operated solenoid that opens and closes to deliver precise amounts of fuel to the engine for each combustion cycle.

Modifying an engine to produce more power typically involves increasing the volume of air it can burn along with fuel. This increased air volume means the engine will also require more fuel to maintain a specific range of air-to-fuel ratio for safe operation. If you have a programmable ECU, you can increase fuel delivery by adjusting the fuel map, which in turn increases the injector’s operating duty cycle. Ideally, injectors should operate at around 80% duty cycle or lower when the engine is producing peak power. If they exceed this, upgrading to larger injectors may be necessary.

When selecting injectors, it’s also important to consider the type of fuel being used. Certain fuels, such as E85, require injectors that are approximately 40% larger to deliver the necessary amount of fuel. Proper injector sizing ensures the engine operates optimally and safely when modified to produce more power.






Available Kits

Haltech offers flow matched injector kits for 4-, 6-, and 8-cylinder applications, ensuring precise fuel delivery for most builds.

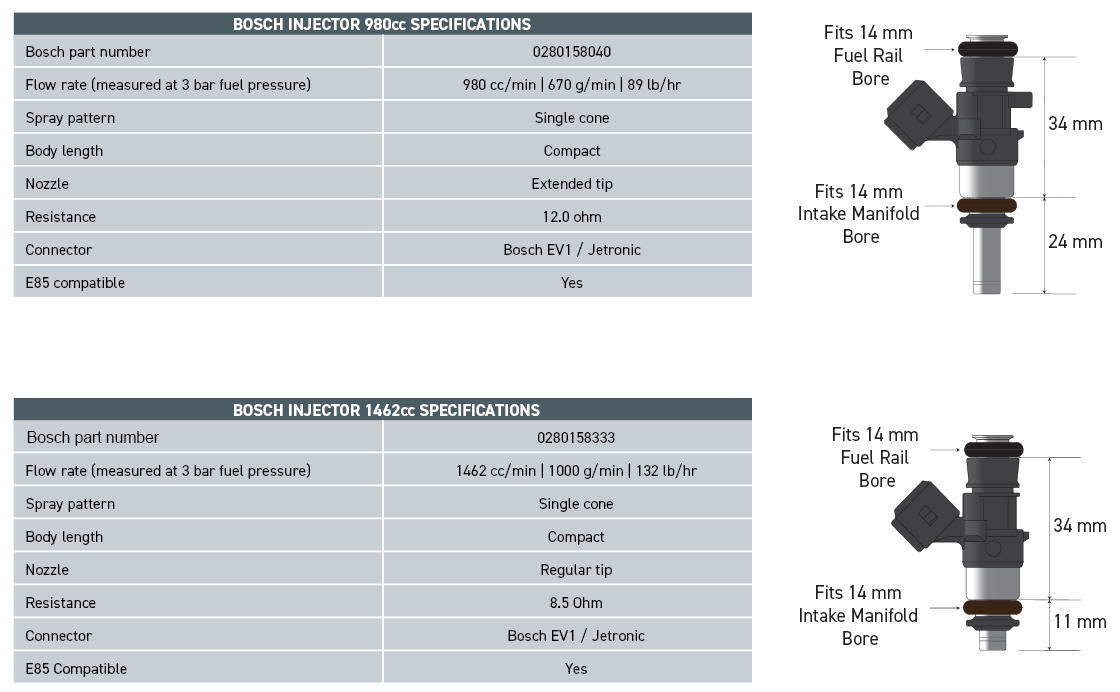

HT-080102 - Bosch 980cc Injectors (Set of 4)
• 4 x Bosch 980cc Injectors, flow matched set
• 4 x Bosch EV1 connector and pins set

HT-080103 - Bosch 980cc Injectors (Set of 6)
• 6 x Bosch 980cc Injectors, flow matched set
• 6 x Bosch EV1 connector and pins set

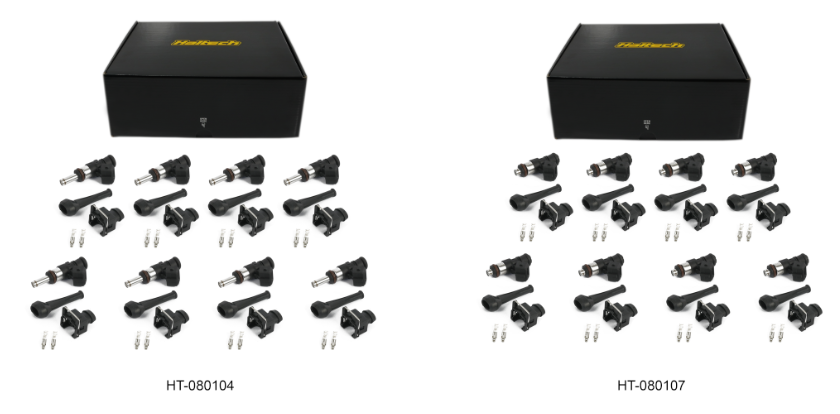

HT-080104 - Bosch 980cc Injectors (Set of 8)
• 8 x Bosch 980cc Injectors, flow matched set
• 8 x Bosch EV1 connector and pins set

HT-080105 - Bosch 1462cc Injectors (Set of 4)
• 4 x Bosch 1462cc Injectors, flow matched set
• 4 x Bosch EV1 connector and pins set

HT-080106 - Bosch 1462cc Injectors (Set of 6)
• 6 x Bosch 1462cc Injectors, flow matched set
• 6 x Bosch EV1 connector and pins set

HT-080107 - Bosch 1462cc Injectors (Set of 8)
• 8 x Bosch 1462cc Injectors, flow matched set
• 8 x Bosch EV1 connector and pins set


Injector Flow Matching

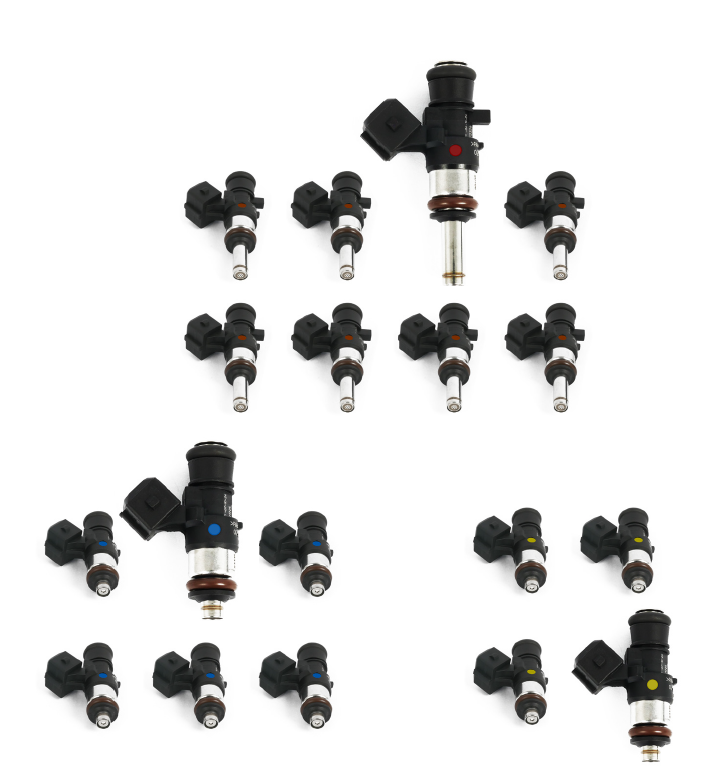

Injector flow matching is the process of measuring and grouping fuel injectors based on their exact fuel flow rates to ensure that each injector in the matched set delivers identical amounts of fuel throughout engine operation, maintaining consistent air-fuel ratios across all cylinders. Once flow matching is completed, each injector is marked with a colored dot on the injector body. Injector groups are assigned colors blue, red, or yellow.







Benefits of Injector Flow Matching

  1. Flow matching helps achieve uniform fuel delivery across all cylinders.
  1. Ensures a consistent air-to-fuel ratio for optimal engine performance.
  1. Allows for more precise tuning with using Haltech’s Nexus Software Programmer.
  1. Promotes balanced power output throughout the rev range.


NSP Injector Setup

Haltech Nexus Software Programmer (NSP) is the software used for tuning and programming Haltech Elite and Nexus ECUs. To configure your map with the correct injector settings for Bosch injectors:

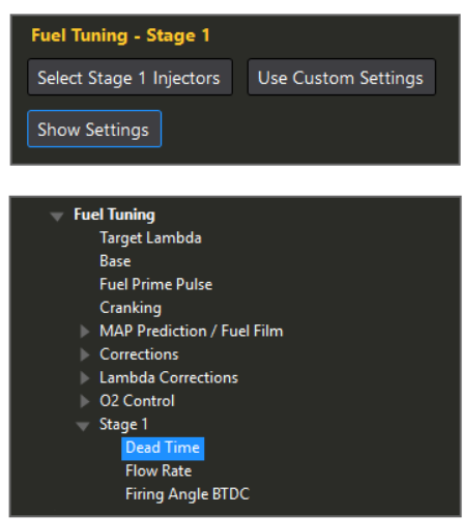

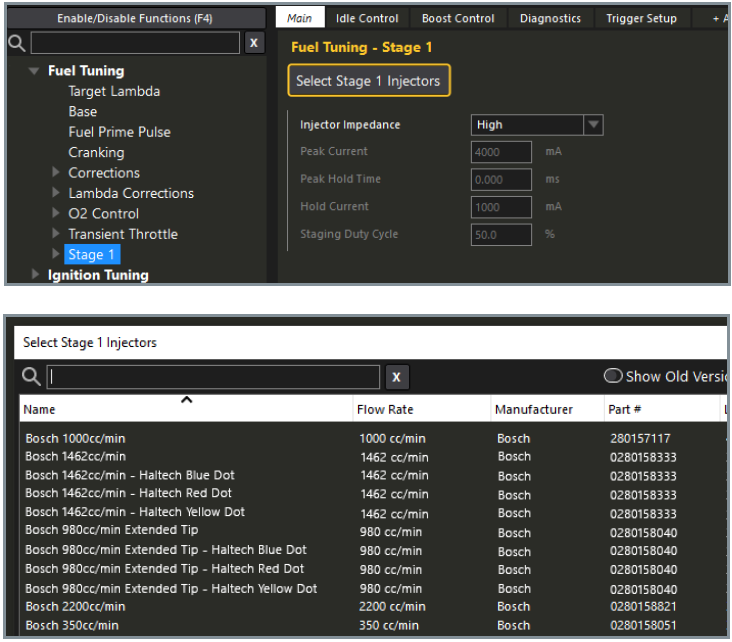

1. Go to the Navigation Tree on the left side of the software, expand the Fuel Tuning node, and then click Stage 1.

2. Click the “Select Stage 1 Injectors” button in the main window.

3. Choose the appropriate Bosch injector from the list, then click OK.



Following the steps above will update the "Injector Dead Time" and "Injector Flow Rate" tables in your map based on the selected injector. If you wish to view or modify these tables, the NSP software provides the option to show these settings.




Injector Data

The following tables contain the Injector Dead Time and Injector Flow Rate values for each injector and corresponding color group—Blue, Red, and Yellow, respectively.
Note: These tables are already available in NSP (version 1.42 or later) when you select these injectors and are provided here for reference only.

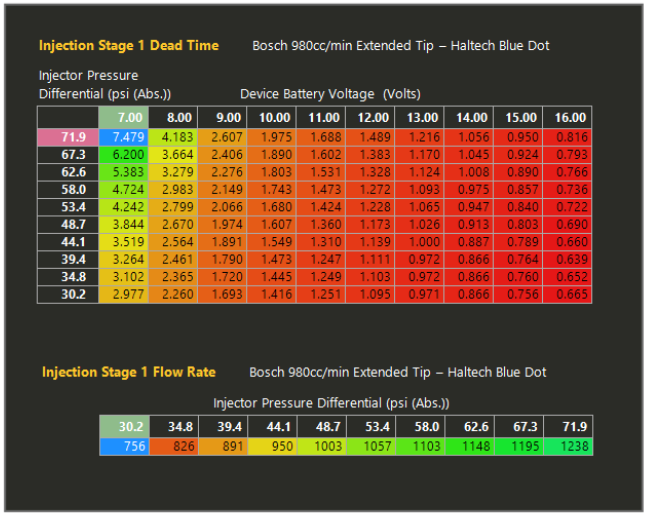

Bosch 980cc Extended Tip - Haltech Blue Dot (Dead Time and Flow Rate)

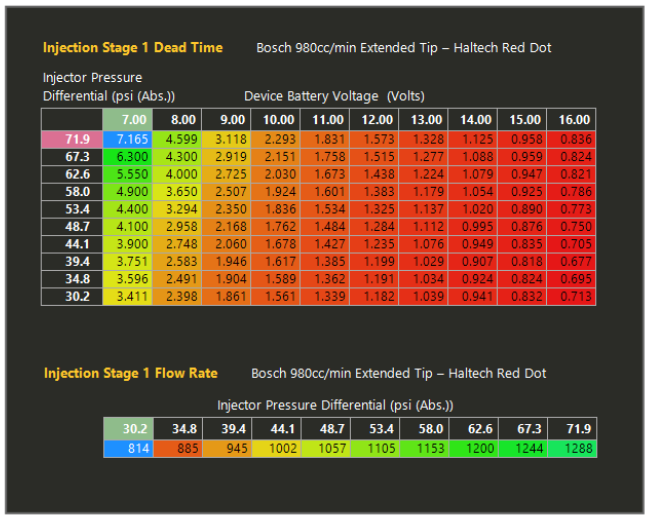

Bosch 980cc Extended Tip - Haltech Red Dot (Dead Time and Flow Rate)

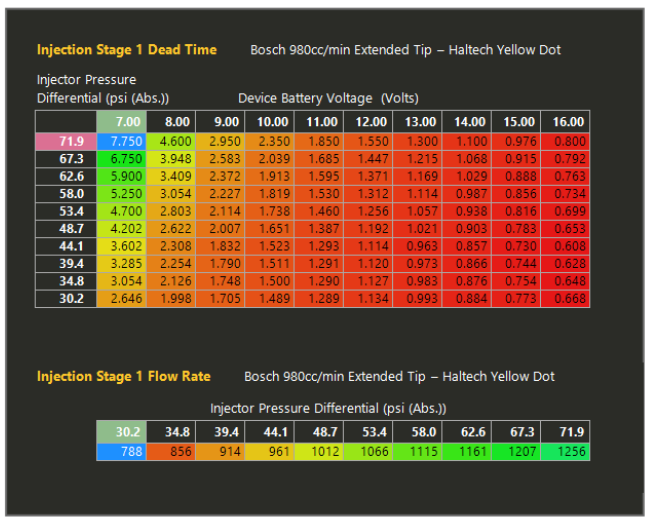

Bosch 980cc Extended Tip - Haltech Yellow Dot (Dead Time and Flow Rate)

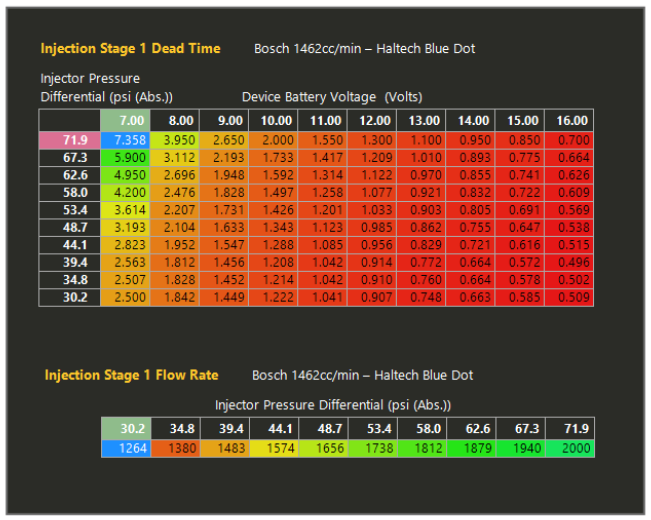

Bosch 1462cc Extended Tip - Haltech Blue Dot (Dead Time and Flow Rate)

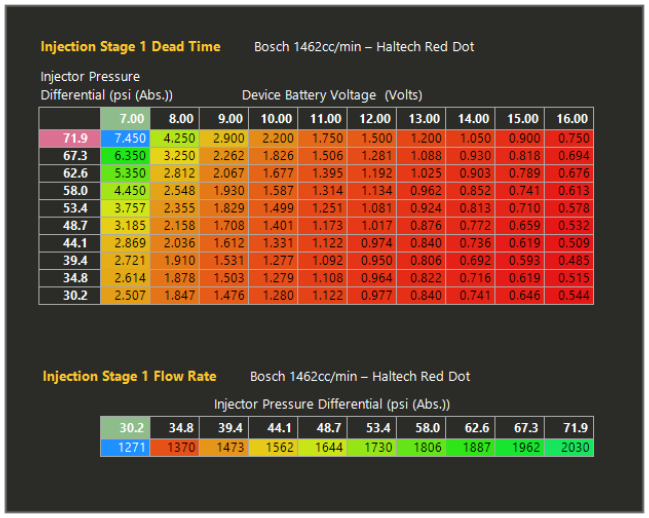

Bosch 1462cc Extended Tip - Haltech Red Dot (Dead Time and Flow Rate)


Bosch 1462cc Extended Tip - Haltech Yellow Dot (Dead Time and Flow Rate)

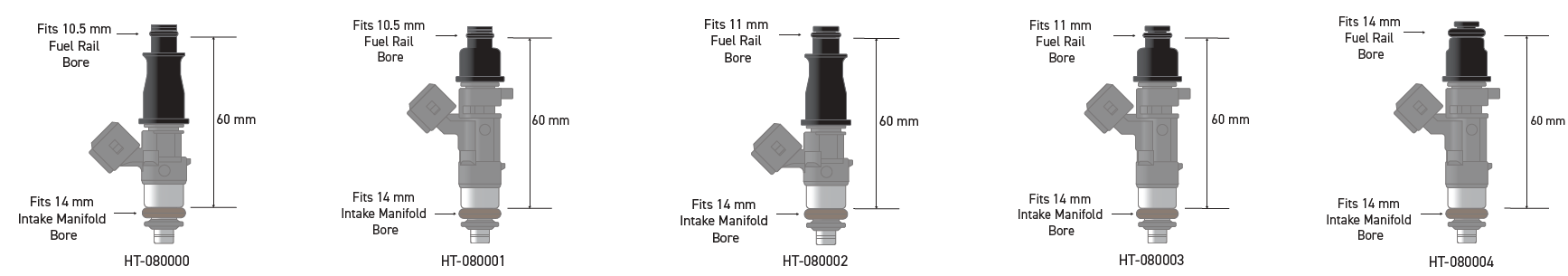

Fuel Injector Adapters

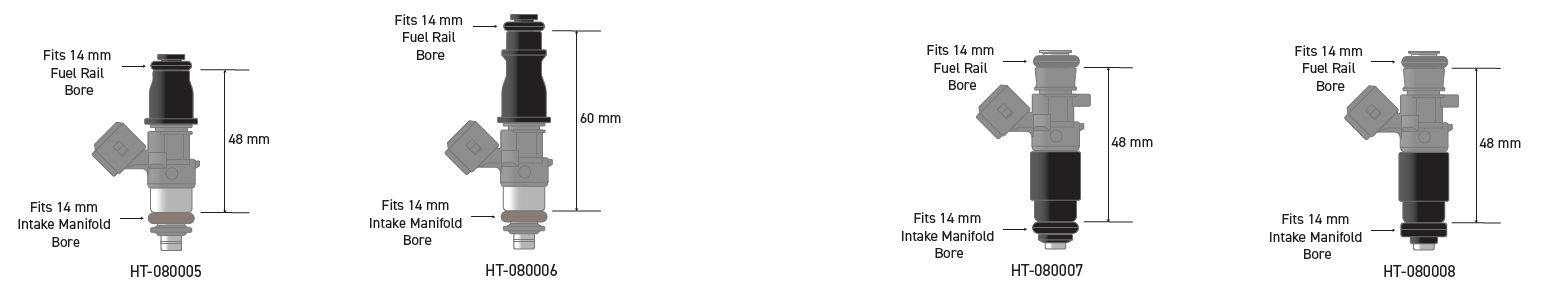

Haltech also offers fuel injector adapters designed to provide flexibility when installing aftermarket injectors across a range of engine configurations. These adapters facilitate compatibility between injectors and aftermarket fuel rails with varying bore diameters and heights. By accommodating differences in injector body dimensions and mounting requirements, they help ensure a secure and leak-free installation.

HT-080000 - Fuel Injector Adapter - 10.5mm 1/2 to Full Length
HT-080001 - Fuel Injector Adapter - 10.5mm Nissan RB26DETT GTR
HT-080002 - Fuel Injector Adapter - 11mm 1/2 to Full Length
HT-080003 - Fuel Injector Adapter - 11mm 3/4 to Full Length
HT-080004 - Fuel Injector Adapter - 14mm 3/4 to Full Length
HT-080005 - Fuel Injector Adapter - 14mm 1/2 to 3/4 Length
HT-080006 - Fuel Injector Adapter - 14mm 1/2 to Full Length
HT-080007 - Fuel Injector Adapter - 14mm Base
HT-080008 - Fuel Injector Adapter - Nissan Base

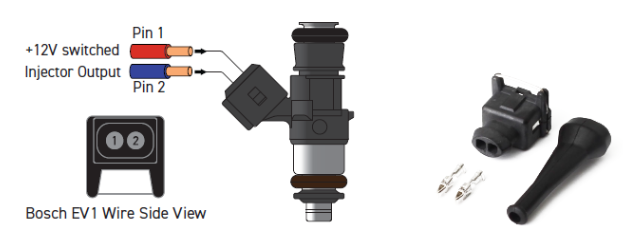

Injector Wiring Information

Wiring a fuel injector involves properly connecting it to the engine’s electrical and fuel management system. The injectors must be correctly wired to an injector output and a 12V switched power supply.


It is also recommended to uniformly assign injector pinouts. For example, all +12V connections can be assigned to Pin 1, and injector outputs to Pin 2. These injectors come with a Bosch EV1/Jetronic push-to-seat connector, including terminals and a rubber boot.


Tools Needed:

• Crimping tool set (HT-070300)

• Wire stripper


Steps to Wire the Injectors:


1.) Cut the injector output and injector power supply wires to the required length, then insert them through the rubber boot.

2.) Strip the wires, then crimp the pins onto each wire—starting with the conductor crimp, followed by the insulation crimp.

3.) Slide the crimped wires into the connector.

4.) Slide the rubber boot onto the connector to protect the pins and provide strain relief.
