Post Start Correction

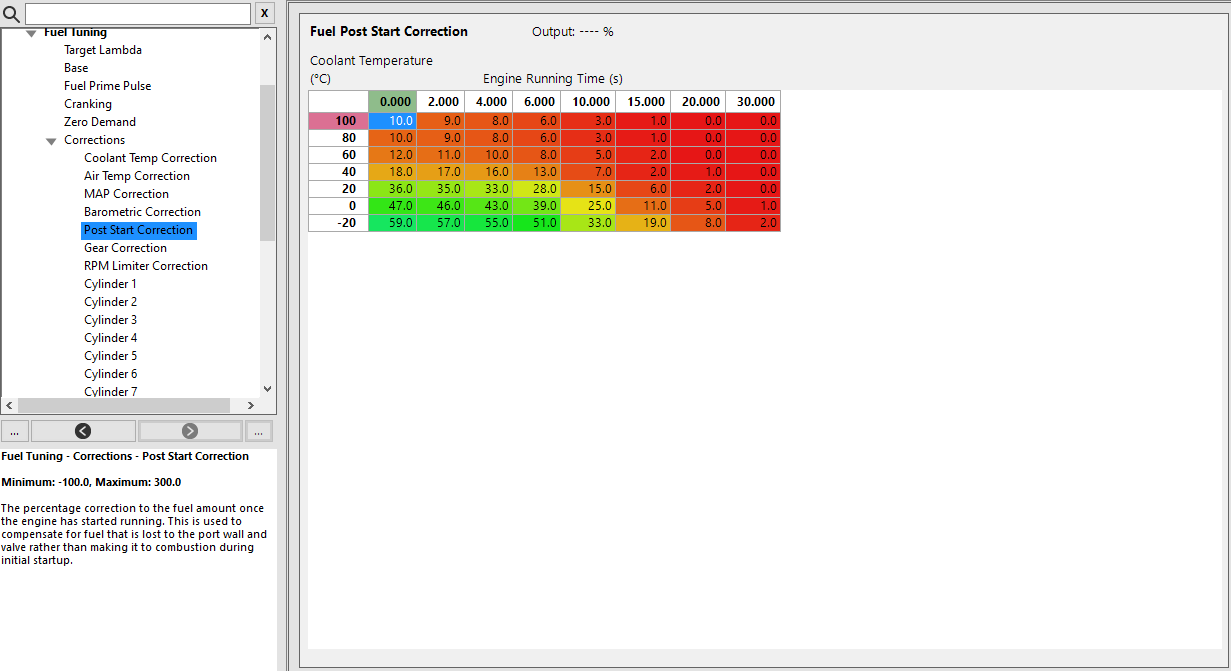

This table controls the fuel correction delivered to the engine just after the engine starts. It is used to deliver additional fuel that may be lost to wall and valve wetting during the warmup process.

Ensure the final Engine Running Time column at operating temperature has a zero value. Any non-zero value in the final column will be added to the fuel delivery regardless of engine run time.
