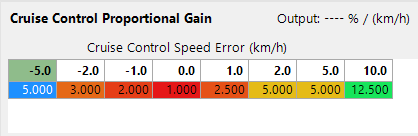

Cruise Control Proportional Gain

Tuning Tips

The Proportional Gain controls the magnitude of response to speed error when cruise control is active. A higher Proportional Gain will result in more throttle and a faster response, however may become unstable. High Proportional Gain when close to target speed can cause subtle hunting (and consequently some motion sickness). Table values are dependent on your speed units chosen in the Preferences menu.
