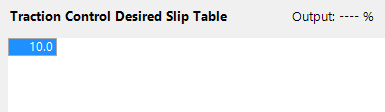

Desired Slip Table

This is the differential speed between the driven and undriven wheels for FWD and RWD vehicles. For AWD vehicles, this is the difference between the fasted and slowest speed sensors. If the actual slip value is larger that the value derived from this table, the traction control function will apply the chosen Cut Method to limit wheel slip. Up to 3D (8x8) mapping is allowed.
