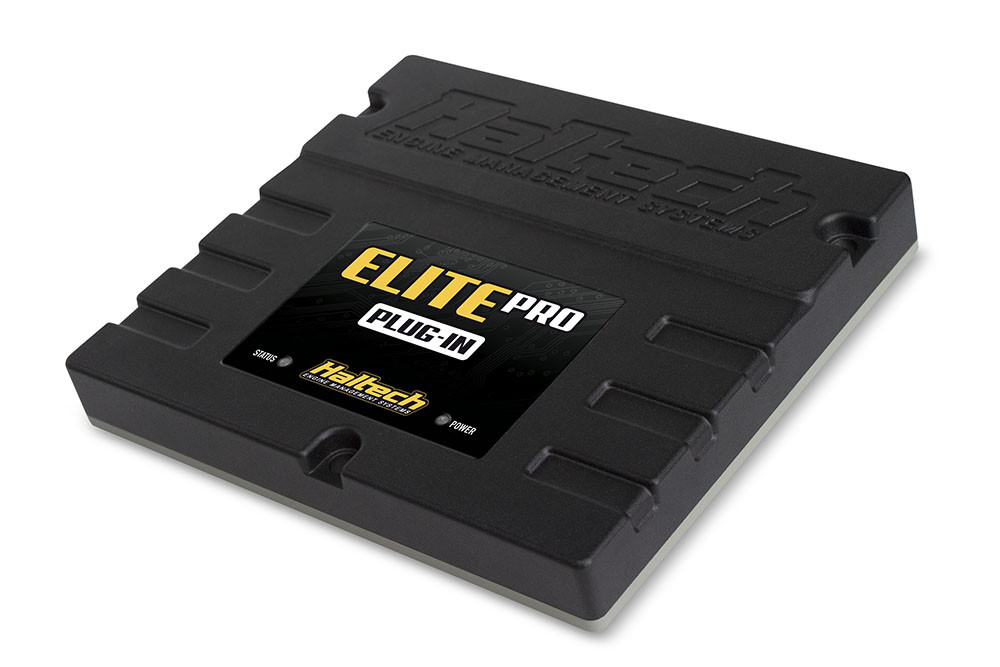

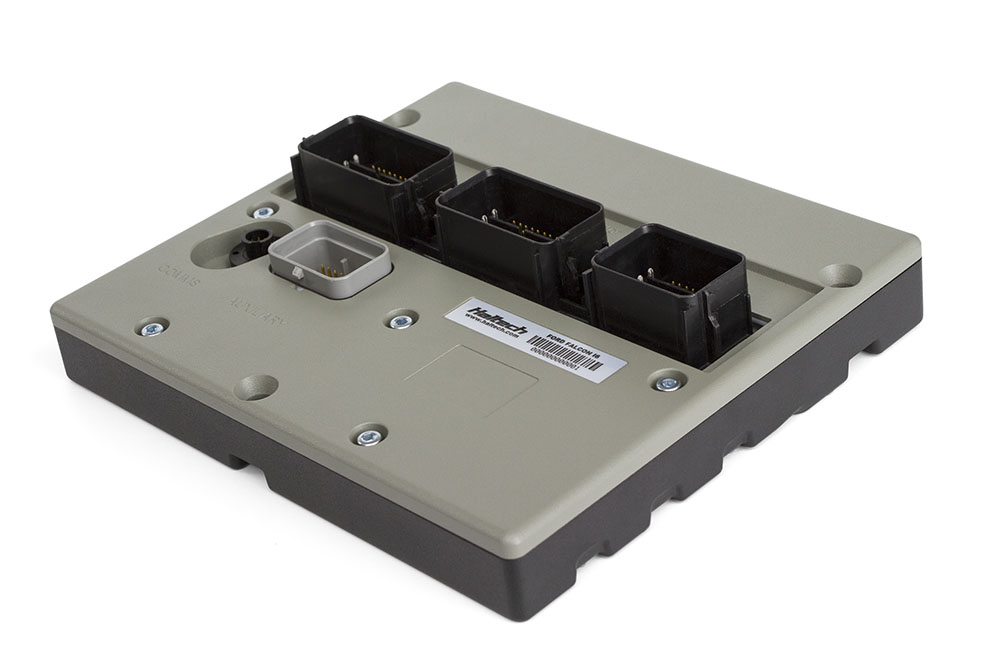

Elite Pro Plug-in ECU to Suit Ford Falcon I6 "Barra"

Elite Pro Plug-in ECU to Suit Ford Falcon I6 "Barra"

Vehicle Compatibility

  • Ford Falcon BA (02-05) I6 4.0-litre DOHC VCT "Barra" Engine with Manual Transmission

  • Ford Falcon BF (05-08) I6 4.0-litre DOHC VCT "Barra" Engine with Manual Transmission

  • Ford Falcon BF (05-08) I6 4.0-litre DOHC VCT "Barra" Engine with ZF 6HP26 6-Speed Automatic Transmission

  • Ford Falcon FG MKI (08-11) I6 4.0-litre DOHC VCT “Barra” Engine with Manual Transmission

  • Ford Falcon FG MKI (08-11) I6 4.0-litre DOHC VCT “Barra” Engine with ZF 6HP26 6-Speed Automatic Transmission

  • Ford Falcon FG MKII (11-14) I6 4.0-litre DOHC VCT “Barra” Engine with Manual Transmission

  • Ford Falcon FG MKII (11-14) I6 4.0-litre DOHC VCT “Barra” Engine with ZF 6HP26 6-Speed Automatic Transmission

  • Naturally Aspirated or Forced Induction

Supported Engines

  • Engines covered: Barra 182, 190, 240T, 245T, 270T

Supported Transmissions

  • Manual Transmission

  • 6 Speed Auto 6HP26 (ZF 6 Speed Transmission CAN Controlled)

Features

  • Die Cast Aluminium, Water Resistant Case (IP66)

  • On-board Automatic Transmission Control via CAN (ZF 6HP26)

  • Multi-fuel Support - Support for Petrol (Gasoline), Methanol and Ethanol

  • Internal Single Channel Wideband (Supports LSU 4.9 Sensor)

  • OBDII Capable - Set and clear diagnostic trouble codes, view live engine data

  • Dual CAN Bus communication for OEM and Haltech CAN Expansion

  • E85 Flex Fuel Ready – Direct connection to sensor

  • Multi-fuel Support - Support for Petrol (Gasoline), Methanol and Ethanol

  • Variable cam control - Independently control 2 camshafts Auto tune capabilities

  • Knock Control - with high speed digital filtering for accurate detection

  • Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time

  • Closed Loop Idle Control – With learning for consistent idle stability

  • Closed Loop 02 Control – Dual bank control for precise tuning

  • Anti-Lag and Launch Control – Drag and Rally modes

  • Cruise Control

  • Short and Long term fuel, ignition, boost and idle control learning

  • Data logging – Up to 40 channels of logging. Sampling rates up to 5ms

  • Multi Level Engine Protection – Set limits for sensors and protect your engine

  • ESP Calibration Software - Intuitive and easy to use

  • Limitless tuning flexibility -Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user definable corrections

  • USB Laptop Communications

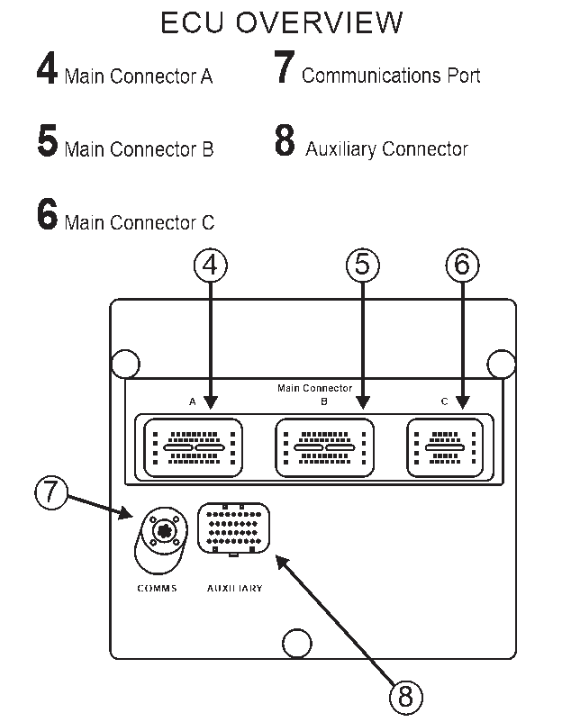

  • Auxiliary Connection 34 Position Connector - User Definable I/O

    • 4 x Digital Pulsed Inputs

    • 4 x Analogue Voltage Inputs

    • 8 x Stage 2 Injector Outputs (Peak and Hold) / Digital Pulsed Outputs

Power Requirements and Ratings

  • Input Supply Voltage : 6.5VDC to 16VDC

  • Output Sensor Supply Maximum Current Ratings:

    • 5V Supply: 100mA Max


Outputs

  • Digital Outputs (DPO) - As per OEM Requirement

  • 6 x Current Controlled Injector Drivers (Peak and Hold - OEM)

    • High or Low Impedance Injector Compatible

    • Programmable Peak and Hold Currents

  • 8 x Additional Injector Outputs Available for Staged Injection
    Can be configured as:

    • Stage 2 Injection

      • High or Low impedance injector compatible

      • Programmable Peak Current - 0A - 8A

      • Programmable Hold Current - 0A - 2A
        OR

    • Spare generic programmable DPO's

  • 6 x Ignition Outputs to Support OEM Ford Coils

    • Drives OEM Coils Directly (Ignitor not required)

  • Drive By Wire (DBW) Output Suits any Throttle Body and Pedal including Ford OEM

Inputs

  • Analogue Voltage Inputs (AVI) - As per OEM Requirements

    • 4 x additional user definable AVIs available on the auxiliary connector

  • Digital Pulsed Inputs (DPI) - As per OEM Requirements

    • 4 x additional user definable DPIs available on the auxiliary connector

      • Used for measuring duty cycle, frequency or state

  • Engine Position Inputs - As per OEM Requirements

    • Supports Ford Barra trigger pattern

    • Alternate generic trigger support also available

  • Knock Inputs - As per OEM Requirements

Communication

  • 2 x CAN Bus Communication

    • Haltech CAN (via auxiliary connector)

    • Vehicle CAN

  • 1 x Circular mini connector for USB programming

Data Logging

  • On-board Data Logging

    • Up to 40 channels

    • Sampling rates up to 5ms

    • 2MB internal storage

Physical Dimensions

Length: 200mm

Width: 177mm

Height (Body): 29.5mm

Height (with connector): 47.5mm
