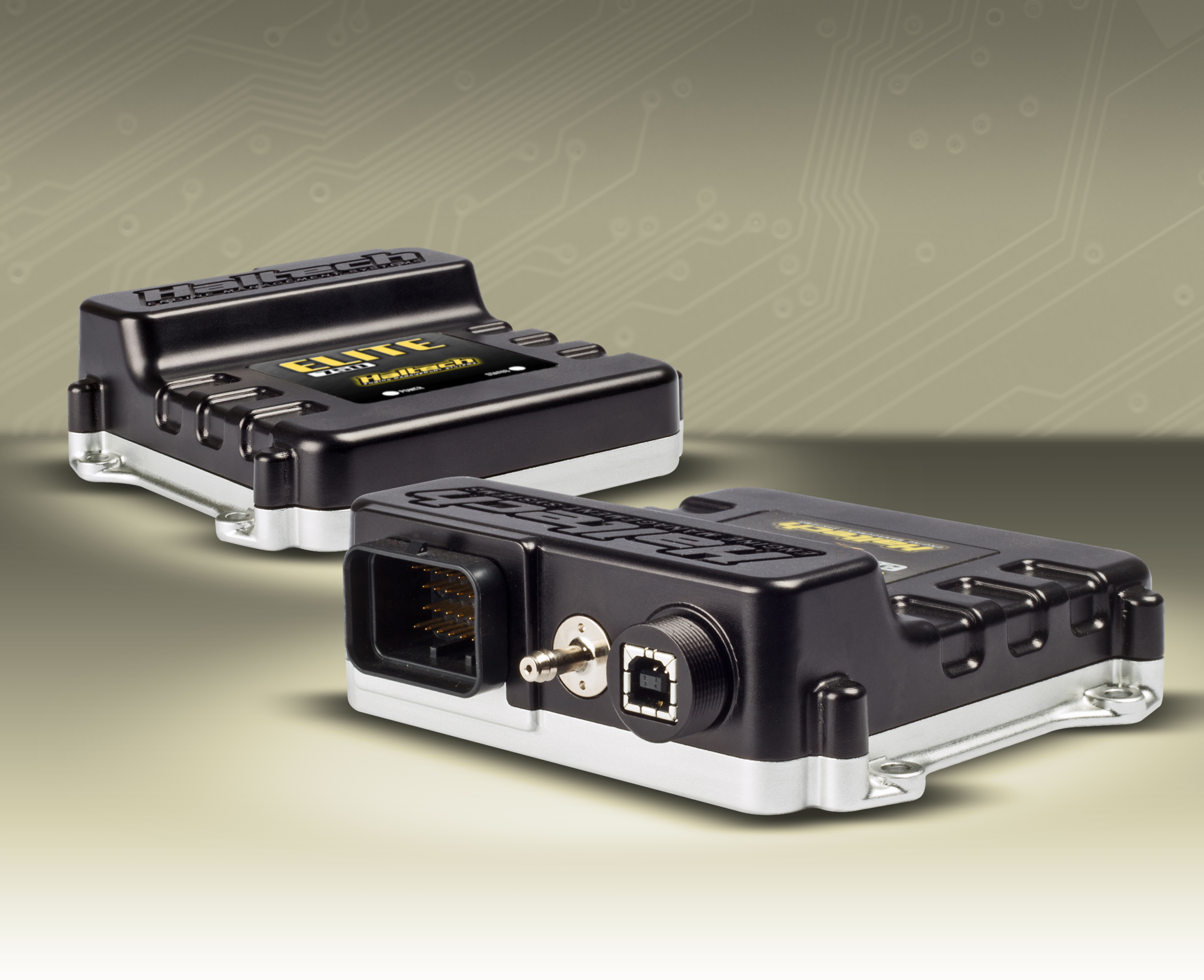

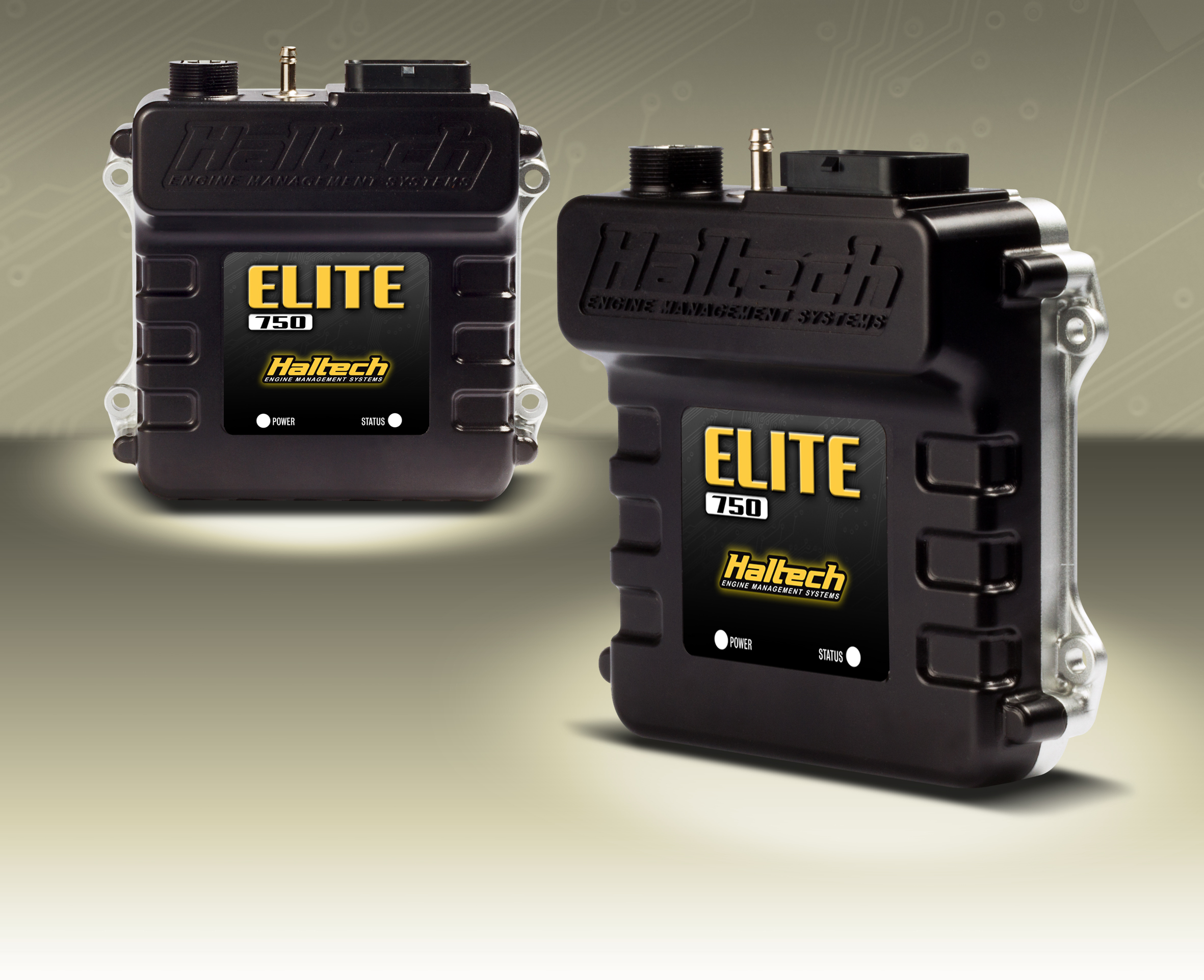

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite ECUs, at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and ignition channels, on-board data logging and flex fuel tuning, the Elite 750 is a powerful, compact ECU.

Features:

• Waterproof Case (IP67 - only with waterproof USB Cable or USB Cap fitted)

NOTE: Waterproof USB Cable (HT-070002) and Waterproof USB Cap (HT-070004) are sold separately.

• Waterproof Case (IP67) (with USB Cover Fitted)
• 34 Position AMP connector
• 6 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold))
• 6 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs (Digital inputs supported only)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x CAN Bus communication for Haltech CAN Expansion
• Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)
• On-board Data Logging
• ESP Calibration Software – Intuitive and easy to use
• Multi-fuel Support – Support for Petrol (Gasoline), Methanol and Ethanol
• E85 Flex Fuel Ready – Direct connection to sensor
• User definable tables
• Closed Loop O2 Control
• ECU comes fully enabled, no additional charges for advanced features.
• Sequential, semi sequential, batch or multipoint injection patterns
• Distributor ignition systems, multi-coil systems or Haltech Multiplex CDI systems
• Load sensing by:
       • Throttle Position (TPS),
       • Manifold Absolute Pressure (MAP) or
       • Mass Air Flow (MAF)

Inputs and Outputs:

• 6 x Fuel Injection Outputs (Peak And Hold (0-8A Peak / 0-2A Hold))
• 6 x Ignition Outputs
• 2 x Engine Position Inputs with extensive trigger type support
• 2 x Digital Pulsed Inputs (Digital inputs supported only)
• 5 x Digital Pulsed Outputs
• 2 x Analogue Voltage Inputs
• 1 x Throttle Position Input
• 1 x Coolant Temperature Input
• 1 x Air Temperature Input
• 1 x Internal 3Bar Map Sensor rated up to 200kPa of Boost (2bar/29psi)
• 1 x CAN Bus communication for Haltech CAN Expansion

Technical Specifications:

Input Supply Voltage : 8VDC to 16VDC

Output Sensor Supply Maximum Current Ratings:

• • 5V Supply: 100mA Max

Dimensions :

Dimensions: 127mm (L) X 127mm (W) X 39mm(H)
                     5.0″ (L) X 5.0″ (W) X 1.54″ (H)
Weight: 350g (0.771lb)
