Fuel Solenoid Duty Cycle

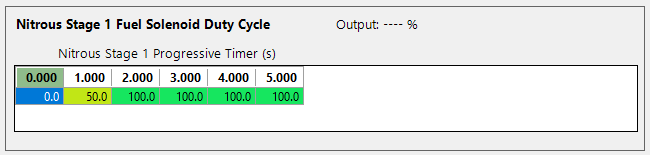

Fuel Solenoid Duty Cycle Table

​

Only available when both Progressive Nitrous Control and Fuel Solenoid Control Output are enabled.

The axis should be set as Nitrous Progressive Timer, as this table sets the duty cycle that the fuel solenoid will be pulsed at.

Up to 3D mapping is available.
