Fuel Tank Pressure Correction

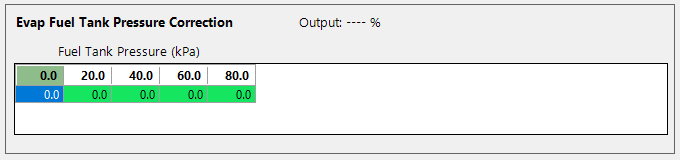

EVAP Fuel Tank Pressure Correction

This table is active when a Fuel Tank Pressure Sensor is being used to give feedback on the pressure in the vapour line. Default this map has zero for all values. Up to 2D mapping is available.
