The Gear Switch node is only available if Gear Detection Type is set to Gear Switch in the Gear Detection function.

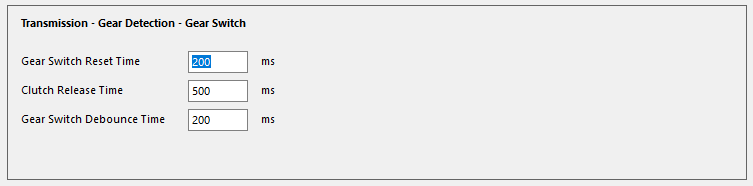

Gear Switch Reset Time

The amount of time after the Clutch Switch has been activated before the Gear Number will reset to 0.

Clutch Release Time

The amount of time after the clutch switch has been deactivated before the Gear Number will increase from 0 to 1.

Gear Switch Debounce Time

The amount of time after the Gear Number has increased by 1 before another Gear Number increase is allowed.
