Pre-Control Duty Cycle

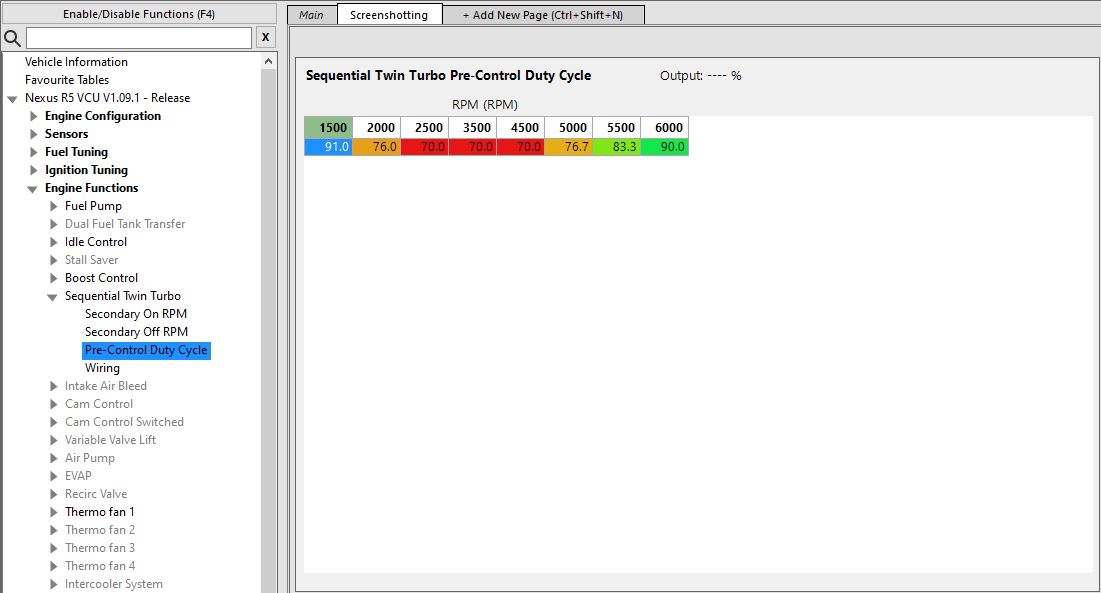

Sequential Twin Turbo Pre-Control Duty Cycle Table

This table sets the duty cycle sent to the secondary turbo pre-control valve. Up to 3D mapping is available.
