Sequential Twin Turbo Wiring

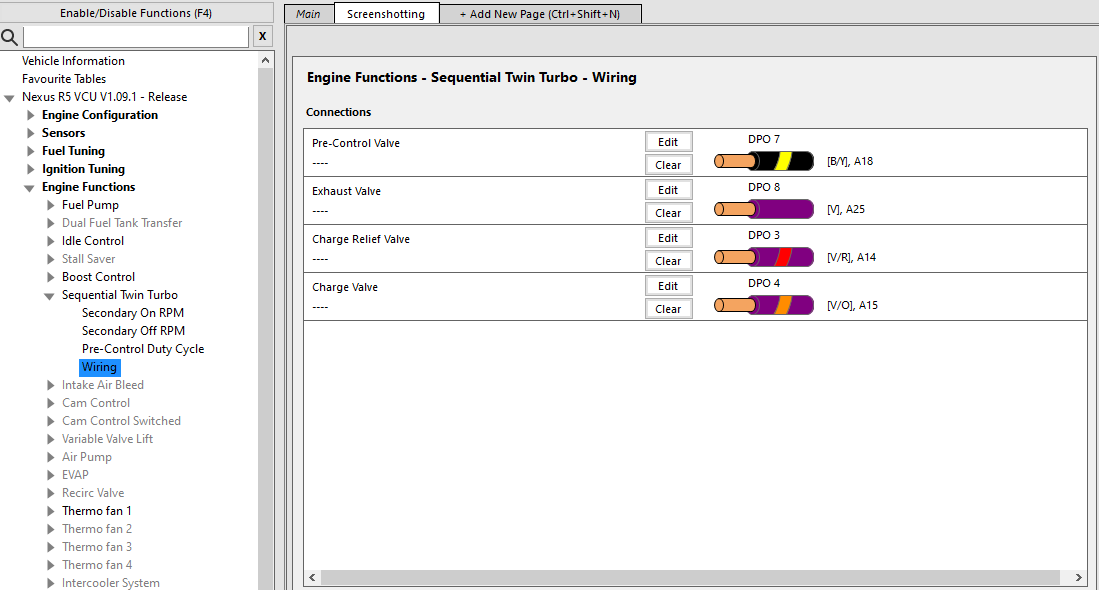

This node allows for configuration of outputs for the Sequential Twin Turbo system.

An output must be selected for the Pre-Control Valve, Exhaust Valve, Charge Relief Valve and Charge Valve. Typically a DPO (Digital Pulsed Output) is used, but any available output is acceptable.
