Trans-Brake Wiring

Trans-Brake Wiring

Wiring



Options

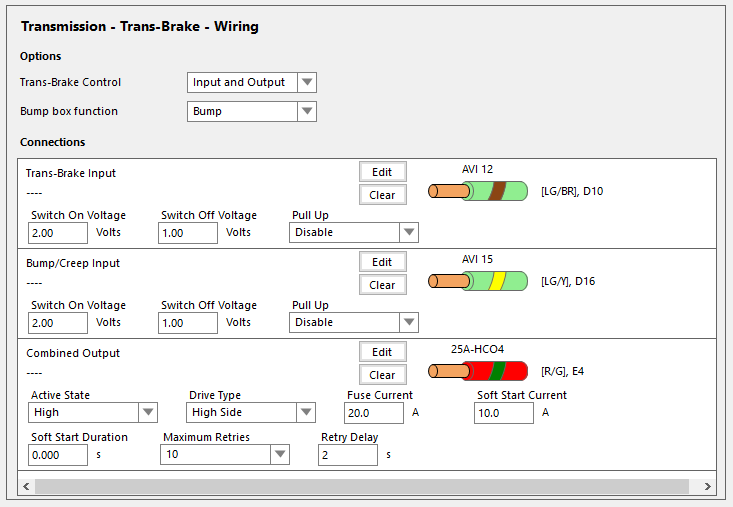

Trans-Brake Control

Select which mode of Trans-Brake Control is desired.
Not Used - Select when the Trans-Brake is not to be used
Input Only - Select when only an input is to be used for the function
Input and Output - Select when both an input and an output is to be used for the function

Bump Box Function

Not Used - Select when neither the Bump nor the Creep function are to be used
Bump - Select when only the Bump function is to be enabled
Creep - Select when only the Creep function is to be enabled

Connections

Trans-Brake Input - Select an appropriate input to use for the Trans-Brake input. An AVI (Analogue Voltage Input) or an SPI (Synchronised Pulsed Input) should be used.

Bump/Creep Input - Select an appropriate input to use for the Bump/Creep input. An AVI (Analogue Voltage Input) or an SPI (Synchronised Pulsed Input) should be used.

Bump/Creep Output - Select an available output wire. Note that the output will draw a lot of current and thus a HCO must be used (preferably a 25A HCO). If there are no HCOs available, it is necessary to use a DPO to trigger a relay (solid state if being used for bump/creep) that then operates the solenoid. It is recommended to set the Soft Start Duration to 0.

Trans-Brake Output - Select an available output wire. Note that the output will draw a lot of current and thus a HCO must be used (preferably a 25A HCO). If there are no HCOs available, it is necessary to use a DPO to trigger a relay (solid state if being used for bump/creep) that then operates the solenoid. It is recommended to set the Soft Start Duration to 0.
