Gear Ratios

Gear Ratios

Gear Ratios

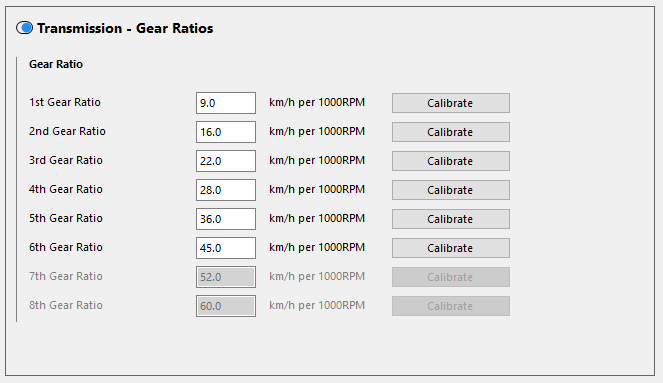

This allows the relationship between engine speed and vehicle speed to be entered so that the ECU can detect the gear position. A vehicle speed sensor is required to be wired in and calibrated before this process can be completed.


 Calibrate

The calibration process required involves driving the vehicle while connected to the NSP software, and pressing the Calibrate button in each gear. Alternately, each of the values can be manually entered if they are known.
