Variable Value Lift Wiring

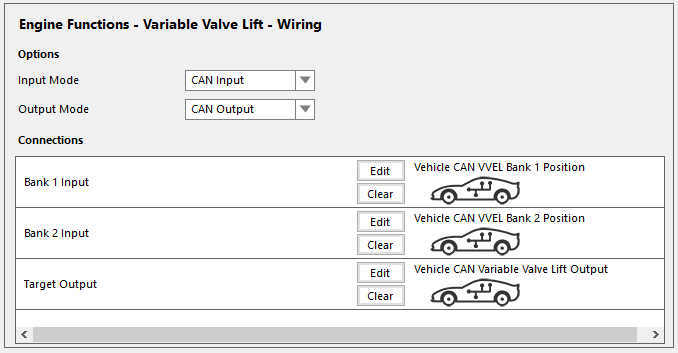

Wiring

Options

Input Mode - Select the input mode (CAN)

Output Mode - Select the output mode (CAN)

Connections

Bank 1 Input - Select an appropriate input connection (from the CAN Bus). Each variable cam must have position sensor information so the ECU knows it’s position.

Bank 2 Input - Select an appropriate input connection (from the CAN Bus). Each variable cam must have position sensor information so the ECU knows it’s position.

Target  Output - Select an appropriate output connection (from the CAN Bus). This is where the output signal will be broadcast.
