Indicator Wiring

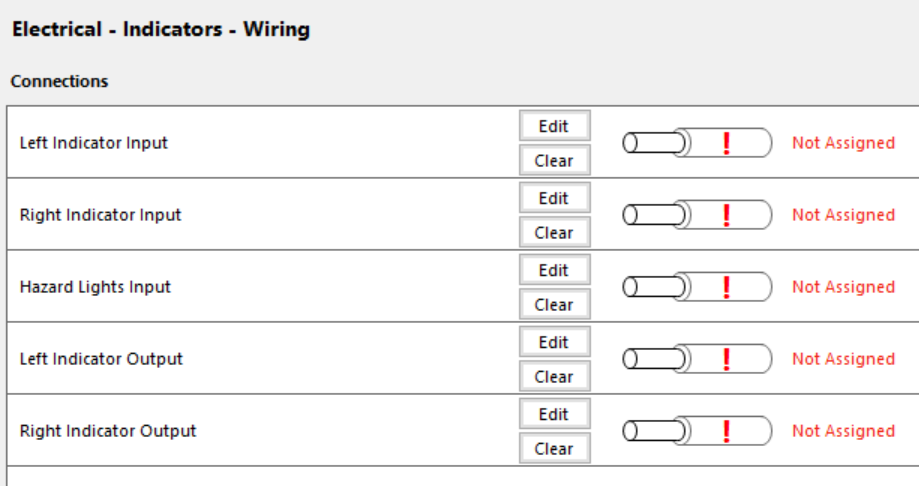

Wiring

Left Indicator Input

      This node allows you to assign the input for the left indicator input.

            Edit - Click to assign/reassign an available input as Left Indicator Input.

            Clear - Click to reset Input assignment.

Right Indicator Input

      This node allows you to assign the input for the right indicator input.

            Edit - Click to assign/reassign an available input as Right Indicator Input.

            Clear - Click to reset Input assignment.

Hazard Lights Input

      This node allows you to assign the input for the Hazard Lights input. (Only available when "Hazard Lights" are enabled under the Indicators tab.

            Edit - Click to assign/reassign an available input as Hazard Lights Input.

            Clear - Click to reset Input assignment.

Left Indicator Output

      This node allows you to assign the output for the left indicator output.

            Edit - Click to assign/reassign an available output as Left Indicator Output.

            Clear - Click to reset Output assignment.

Right Indicator Output

      This node allows you to assign the output for the left indicator output.

            Edit - Click to assign/reassign an available output as Right Indicator Output.

            Clear - Click to reset Output assignment.
