Generic Condition

Generic Condition

Generic Condition

The Generic Condition function allows a custom channel to be created for mapping or datalogging purposes based on up to 3 other channels and/or an input switch and their conditions.

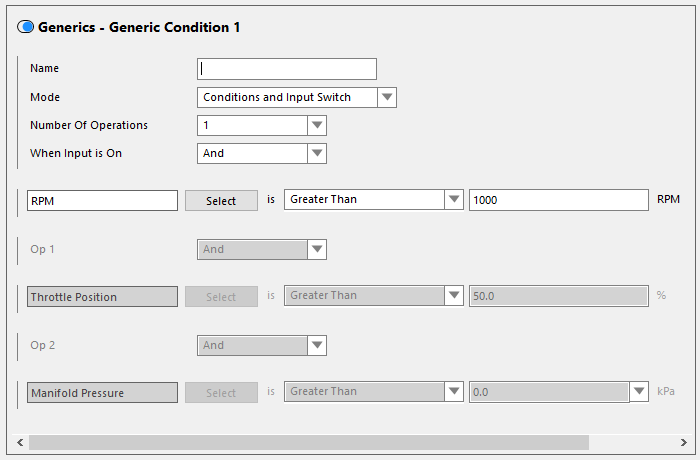

Settings




Name - Enter a name that is to be used for this table. This name can be used when searching for channels throughout the system.

Mode - Sets whether the Generic Condition is triggered by conditions only, Input only or Conditions and an Input. The input must be a switched input.

Number Of Operations - Selects the number of channels, up to 3, that will be used in the calculation of your Generic Condition

Select Channel - Allow selection of the ECU channel to be used.
Maths - A selection of Equal To, Not Equal To, Greater Than, Less Than, Greater Than Or Equal To, Less Than Or Equal To that is to be used.
Value - The value the maths must meet.
Operation - Allows the use of and/or to combine conditions so that multiple conditions must be met to create the new Generic Condition.

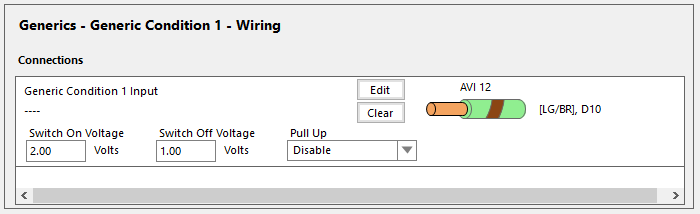

Wiring



This node allows for an input to be assigned to the Generic Condition. This is only available and must be assigned if the Generic Condition Mode is set to Input Only or Conditions and Input Switch
